Writing a
SGQR Parser
Mon 10 Dec 2018

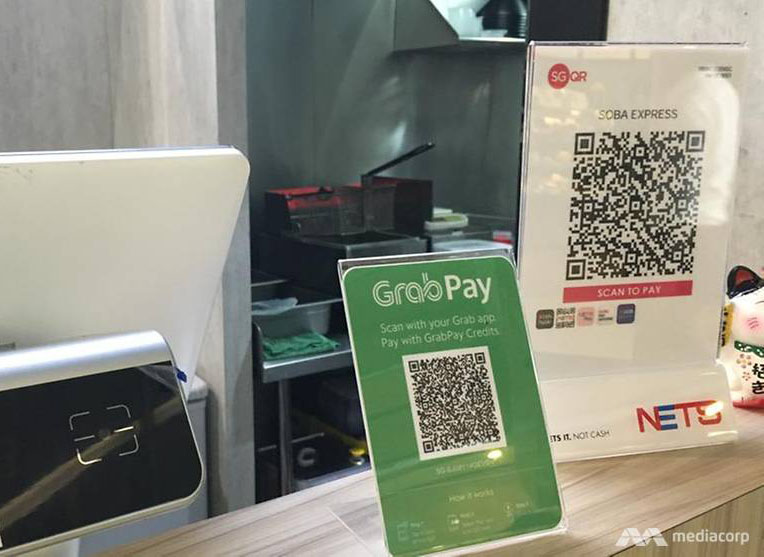

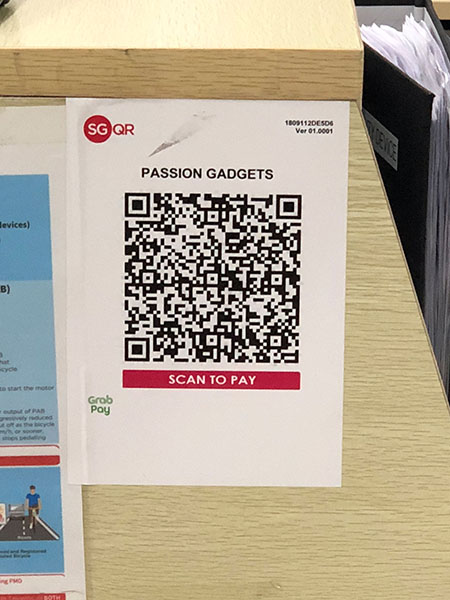

What is SGQR?
Credits: https://blog.seedly.sg/singapore-cashless-favepay-grabpay-paynow-paylah-alipay-nets/
Credits: https://www.channelnewsasia.com/news/singapore/sgqr-qr-code-cashless-payment-singapore-rolls-out-unified-10727568
Credits: https://www.mas.gov.sg/sgqr
SGQR Specifications
Merchant-Presented Mode
https://www.emvco.com/emv-technologies/qrcodes/
Sample SGQR
|
00020101021126810011SG.COM.NETS01231198500065G9912312359000211111686614000308686614019908604108C251800007SG.SGQR01121809072DD85C020701.00010306079027040201050206060400000708201809155204581253037025802SG5912ABC MERCHANT6009Singapore630457B3
|

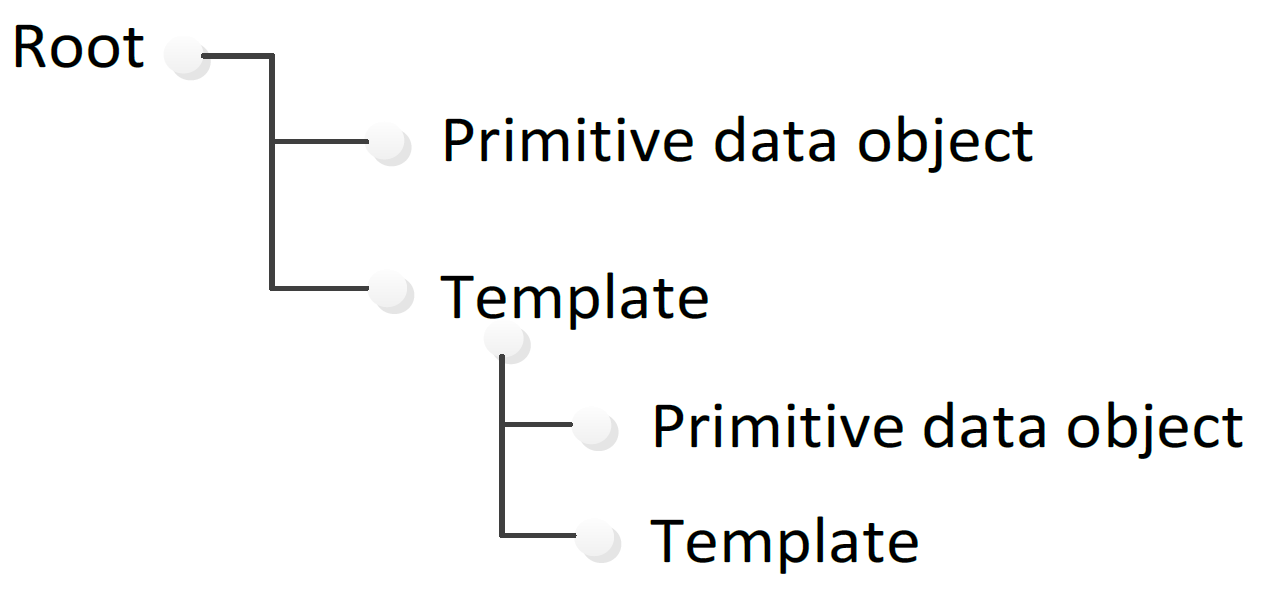

Each data object has 3 fields:
- The ID is coded as a two-digit numeric value, with a value ranging from "00" to "99".
- The length is coded as a two-digit numeric value, with a value ranging from "01" to "99".
- The value field has a minimum length of one character and maximum length of 99 characters.
00020101021126810011SG.COM.NETS01231198500065G9912312359000211111686614000308686614019908604108C251800007SG.SGQR01121809072DD85C020701.00010306079027040201050206060400000708201809155204581253037025802SG5912ABC MERCHANT6009Singapore630457B3
000201 => 00 02 01 (ID: 00, Length: 02, Value: 01)
630457B3 => 63 04 57B3 (ID: 63, Length: 04, Value: 57B3)
...26810011SG.COM.NETS01231198500065G9912312359000211111686614000308686614019908604108C2...
ID: 26 (under Root Data Object) - Merchant Account Information Template,
Length: 81
0011SG.COM.NETS => 00 11 SG.COM.NETS
ID: 00 (under Template for ID 26) - Globally Unique Identifier
Length: 11, Value: SG.COM.NETS
ID: 00 (under Template for ID 26) - Globally Unique Identifier
Length: 11, Value: SG.COM.NETS
Parser Code
https://github.com/zionsg/sgqr-parser

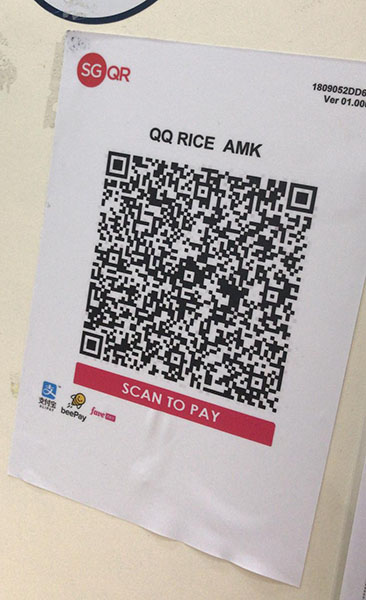

Demo
Credits: https://www.channelnewsasia.com/news/singapore/sgqr-qr-code-cashless-payment-singapore-rolls-out-unified-10727568
PayNow SGQR sample
(with transaction amount and nested template id 50 under root template id 62)
